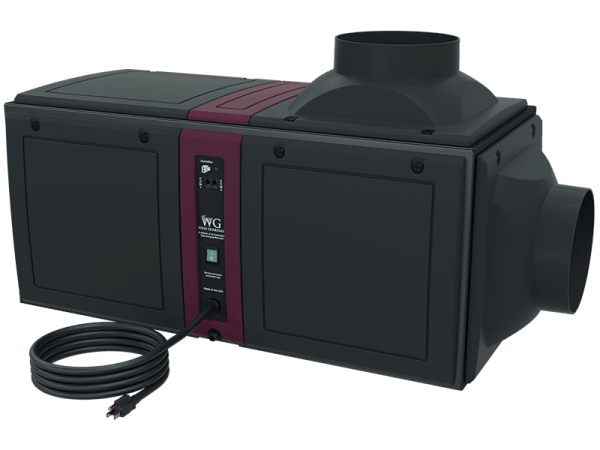

Wine Guardian Sentinel D025 Ducted Wine Cellar Air Cooling System

Starting at: $4,750.00

WG Systems Bundle Options Tier 2

Duct Collar Return Inlet Tier 1

Duct Collar Supply Outlet Tier 1

Remote Sensor & Remote Interface Bundle

Product total

Options total

Grand total


33″l x 14″w x 14″h

Product Description

Manufactured by: Air Innovations


Note: Shipping prices for options are built into displayed price so no additional shipping charge is added during the checkout process for options.


Wine Guardian wine cellar cooling systems provide superior performance, design flexibility and aesthetic appeal for residential and commercial wine cellar environments. This Sentinel system is designed to cool small rooms between 400-2000 cu. ft. and comes standard with a remote interface controller and 50 feet of communication cable, allowing for temperature control with single stage cooling, heating, and humidifier control. Several important accessories are available to ensure proper cooling in your wine cellar or wine room.


Dimensions: 33"l x 14"w x 14"h

Cu. Ft: 400-2000

Electrical: 115v/1ph/60hz

BTUs: 3000

Capacity: 1/4 ton


Key Features

  • Aluminum outer body is lightweight and corrosion resistant, providing protection from the elements
  • The Wine Guardian is a commercial grade unit but offers ultra-quiet climate control for your wine cellar
  • The design of the Wine Guardian wine cellar cooling system provides multi-panel access for easy service
  • ETL listed and approved. Learn more about ETL approval at
  • Unlike any other unit, the Wine Guardian comes standard with high-pressure static fans allowing you to use extended lengths of ductwork
  • System can be installed inside of an attic (Considerations need to be made for temperature and ducting the exhaust air out of the space)

** Ultimate bundle available with all options (Low Ambient, All Wine Temps) Price: $7460 Call to Order

View more information about the Wine Guardian ducted systems
