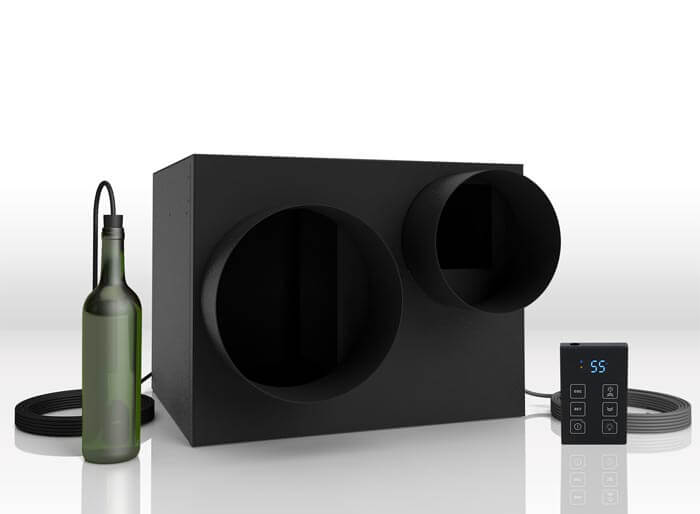

WhisperKOOL 4000 Platinum Ducted Split Wine Cellar Cooling System

The WhisperKOOL Platinum Ducted Split wine cellar cooling series is one of WhisperKOOL's more aesthetic and quieter systems. This system is installed in an adjacent space with the air ducted into the wine cellar. This cellar cooling unit is suitable for a variety of applications because the air handler can be up to 25 feet away and the condenser unit can be up to 100 feet away from the cellar. This unit can perform in more extreme temperatures, as the condenser unit can be placed in environments up to 110 degrees. A separate humidifier is needed when additional humidification is needed. An HVAC professional is required for installation.



Factory Special Disclaimer: This discounted cooling system was originally part of another order but is brand new and has been thoroughly tested. All Factory Special cooling systems come with a 90-day money-back guarantee.
Have questions or ready to place an order? Call us at 603.285.0400 — we’re happy to help.



Weight:

• Evaporator: 57lbs
• Condenser: 56lbs

Dimensions:

• 16.1”L x 20.5”W x 15.5”H
• Condenser: 31.18"L x 10.75 "W x 21.18" H

Cu. Ft: 1000

Key Features:

• Virtually silent operation
• Advanced electronic control system
• Liquid bottle probe
• Condensation evaporator
• Humidity Control
• Energy saving mode
• Alarm capabilities
• Flexible installation
• Condenser:  220V H.E (15-amp dedicated circuit required)*
• 55°F degree temperature differential
• Condenser unit can be placed outdoors with optional housing
• Two year parts and labor / five year compressor warranty

View more information about the WhisperKOOL ducted split systems



Pre-Order Checklist:

• Consult a wine cellar professional to ensure proper unit application
• For through the wall installations, ensure that the exhaust area is adequate for heat dissipation and noise
• Cellar is properly lined with a vapor barrier
• Dedicated 15 amp circuit
• Drain line accommodation
• Cellar volume (LxWxH) is less than or equal to units recommended capacity
• For cellars that have windows or cement (not recommended), an oversized unit will compensate for the cooling loss

FS016
